Control Containers
Akkerman Microtunneling Control Containers (MCC) are designed to power the widest range of MTBM diameters on the market along with advanced technology to accommodate complex alignments and remote monitoring.

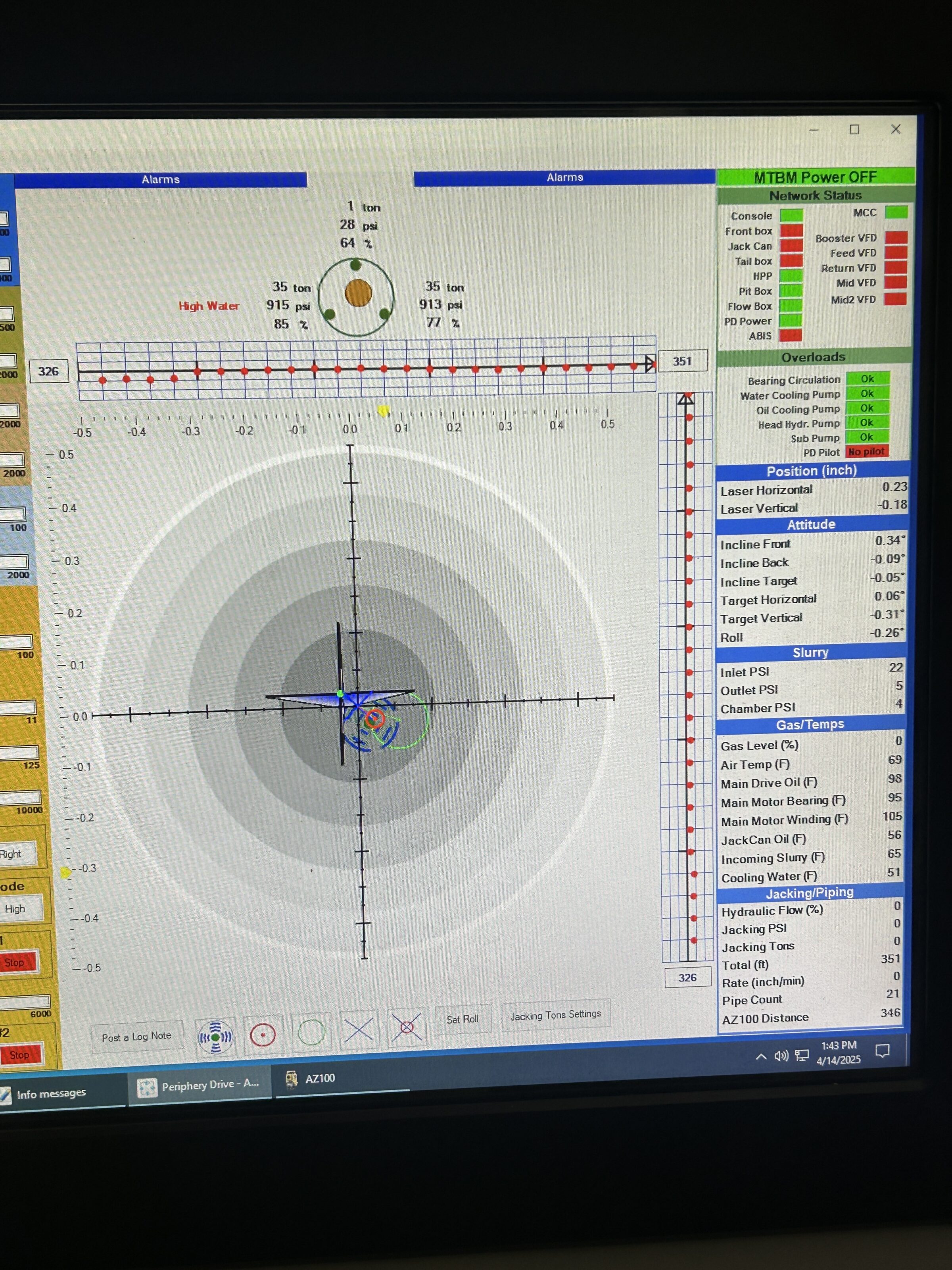

The MCC is the control room for all on-site MTBM operations. The MTBM operator monitors and controls all aspects of the tunnelling operations through a multi-monitor display using Akkerman proprietary software and data logging system. An external remote display of the on-screen operations is provided for operator privacy, while secure remote monitoring and data logging can be provided through Akkerman’s secured communication network.
Benefits
- Powerful VFD drive capacity capable of controlling all SLC MTBM and SLP MTBMs with external power pack container.
- Simplified operator’s console with programmable warning indication and alarms.
- A/I feature such as automatic slurry valve sequencing and guidance system programming.
- Operator control and monitoring of all MTBM functions, Thrust Frame, Slurry Flows, Slurry Sequencing, Monitoring, IJS, Bentonite Injection, High Pressure Jetting, and more
FEATURES:
Microtunnel Control Container
- Standard Akkerman control containers operate center‑drive MTBMs up to 250 hp (187 kW), including SL30C–SL74C models.
- Operate up to four 100 hp (75 kW) slurry pumps.
- Audio and video communications with MTBM and jobsite.
- Akkerman MTBM Control Software.
- Automatic Bentonite Injection System control software.
- Enhanced Tunnel Guidance System control.
- Climate‑controlled cabin with 120 V outlets and dimmable lighting.
- Data logging and remote data logging functionality.
- Akkerman MTBM Cloud with remote user access for monitoring and system analysis.
- External operator screen option (Inspector Screen).
- Rugged ISO container construction for transport and jobsite security.
- Optional periphery drive power container increases capacity up to 500 hp for SL60P models and larger.
Remote Hydraulic Power Pack
- Remote‑controlled by the MTBM operator in the MCC; optional remote pendant available.
- Provides hydraulic power to pipe jacking thrust frame and intermediate jacking functions.
- Electric drive for maximum efficiency and reduced emissions.
- Constructed in a rugged Bi‑Con ISO container for easy transport and jobsite security.
SLP Main Drive Power Container
- Works with the Akkerman MCC to supply 4160 V tunnel power to SLP model MTBM power packs.
- Built with soft‑start control and microprocessor‑based protection for efficient startups.
- Fully remote‑controlled by the MTBM operator in the primary MCC.
- Fully climate‑controlled for heat dissipation in severe environments.
- Constructed in a rugged ISO container for transport and jobsite security.
SPECIFICATIONS
Print This Page| Model | Weight / L x W x H | Main Disconnect | Capacity |
|---|---|---|---|
| MCC | 11,000 lbs. / 20 x 8 x 9.5 ft. | 1000A 480v, 60hz, 3ph | (1) – 250 hp VFD (3) – 100 hp VFD |
| Hyd. Power | 9,500 lbs. / 10 x 8 x 8.5 ft. | 200A 480v, 60hz, 3ph | 0-13 gpm / 8,000 psi |
| Main Drive Power | 12,500 lbs. / 20 x 8 x 8.5 ft. | 800A 480v, 60hz, 3ph | 400 hp 4160V, 60hz, 3ph |
