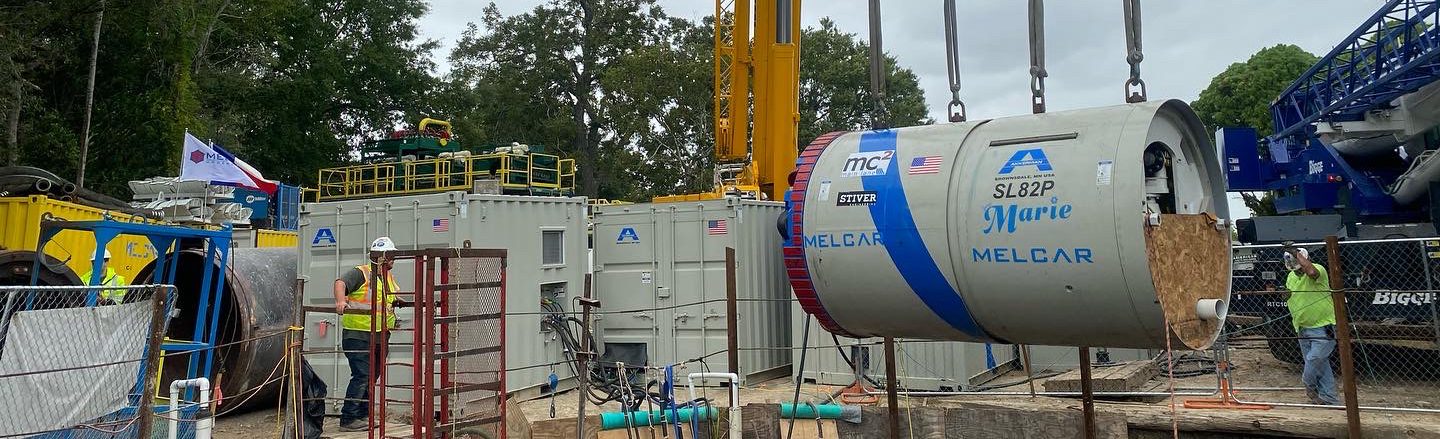

SLP System – Periphery Drive
Akkerman periphery drive slurry microtunneling systems (SLP) are designed to deliver powerful performance for extended distances and curved alignments. These units include an on-board power pack with remotely selectable torque ranges to conquer changing ground conditions. Like all Akkerman microtunneling systems, the SLP lineup is fully remote-controlled from the surface and offers face access for cutterhead inspection, tool replacement, or obstruction removal.
FEATURES:
- All SLP series microtunneling systems use the same Akkerman Microtunnel Control Container (MCC) as SLC models, with an added remotely controlled periphery drive power booster container.
- Airlock kits available for pipe diameters of 78‑in ID and larger per PVHO and OSHA standards.
- Sizing kits available to accommodate multiple diameters with one MTBM.
- Interchangeable cutterhead types: Soft Ground, Mixed Face, Rock.
- Selectable high‑pressure jetting nozzles assist ground flow and cutting in cohesive soils.
- Variable‑flow slurry routing controls hydrostatic balance to the cutting head or plenum chamber based on ground conditions.
- Sealing system rated to 3 bar; underwater retrieval compatible with sealed adapters.
- Mechanical and hydrostatic balancing with remote monitoring.
- Active MTBM monitoring and report generation including gas detection, roll, slurry monitoring, steering position, guidance, electrical connectivity, and more.
- All SLP systems compatible with the Akkerman TGS guidance system.
SPECIFICATIONS
Print This Page| Model | Power / Torque | Diameter / Cut Dia. | Est. Weight |
|---|---|---|---|
| SL60P | 250 hp / 185,000 ft-lbf | 60-in. / 62-in. | 32,000 lbs. |
| SL74P | 400 hp / 300,000 ft-lbf | 74-in. / 76-in. | 40,000 lbs. |
| SL82P | 400 hp / 350,000 ft-lbf | 82-in. / 84-in. | 48,000 lbs. |
| SL86P | 400 hp / 404,000 ft-lbf | 86-in. / 88-in. | 53,000 lbs. |
| SL96P | 500 hp / 500,000 ft-lbf | 96-in. / 98-in. | 60,000 lbs. |
| SL114P | 500 hp / 600,000 ft-lbf | 114-in. / 116-in. | 80,000 lbs. |
Weights dependent on configuration of final unit.
