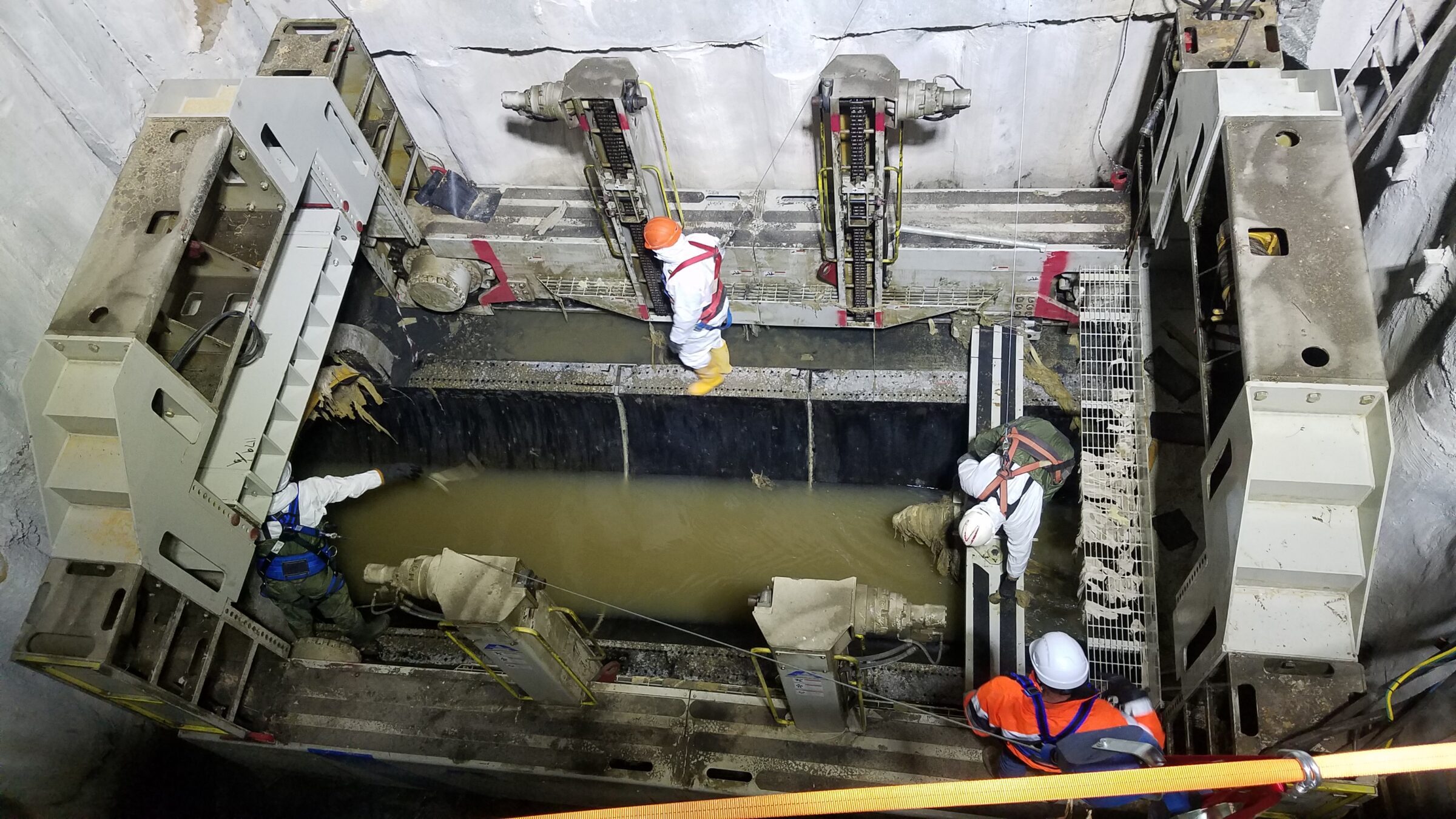

SLS-100 Slip-Liner
The Akkerman SLS‐100 sliplining system allows easier, cleaner, faster, cheaper, and safer rehabilitation of 30‐102‐inches OD live sewers, the sliplining system aids to prolong the lifespan of failing infrastructure and eliminate the need for bypass pumping.
The modular sliplining frame can accommodate up to 20‐foot pipe joints for installation in either direction and features a retention winch and pipe clamp to assist with positioning and counterbalance flow force during installation.
Using a wireless remote controller with LCD screen, the operator controls the main drive, bidirectional travel, brakes, speed control, frame elevators, pipe clamp, winch, E‐Stop, and lighting. Two‐speed dual or quad motors and chain driven planetary gearboxes generate thrust force to advance pipe into position assisted by speed sensors for synchronized travel. Sliplining operations are powered by an Electric or Diesel Power Pack with three variable displacement pumps.
Our innovative SLS 100 system contains a standard or extended modular jacking frame.
To complete the Akkerman sliplining system, we offer custom manufactured provers, mandrels, pipe shield/savers for specific pipe internal diameters.
FEATURES:
- Modular jacking frame accommodates 30–102‑in OD pipe up to 20 ft long using pipe spacers and frame extensions.
- Two‑speed quad drive motors generate thrust; chain‑driven planetary gearboxes advance pipe axially using a thrust ring.
- Pipe elevators lift up to 20,000 lb and travel at 12.5 ft/min.
- Features electrical speed sensors for consistent travel.
- Pipe can be installed in either direction from one access pit.
- Live remote access to data, logs, graphs, and documentation via modem with cellular network connection.
SPECIFICATIONS
Print This PageSLS 100 Frames
| Main Thrust Drive | Weight |
|---|---|
| 130‐ton | 36,000/42,000‐lbs. |
Power Packs
| Motor/Engine | Weight |
|---|---|
| 200/215 – Tier IV HP (148/160 kW) | 10,000‐lbs. |
